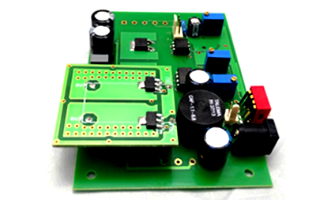

NDR6110 OEM Single Channel Dynamic Board

NDR6110 OEM is a single channel dynamic board that can be fitted into your own system. The piezo driver provides the same features and capacity as the standalone model NDR6110.

Specifications Features Standard versions

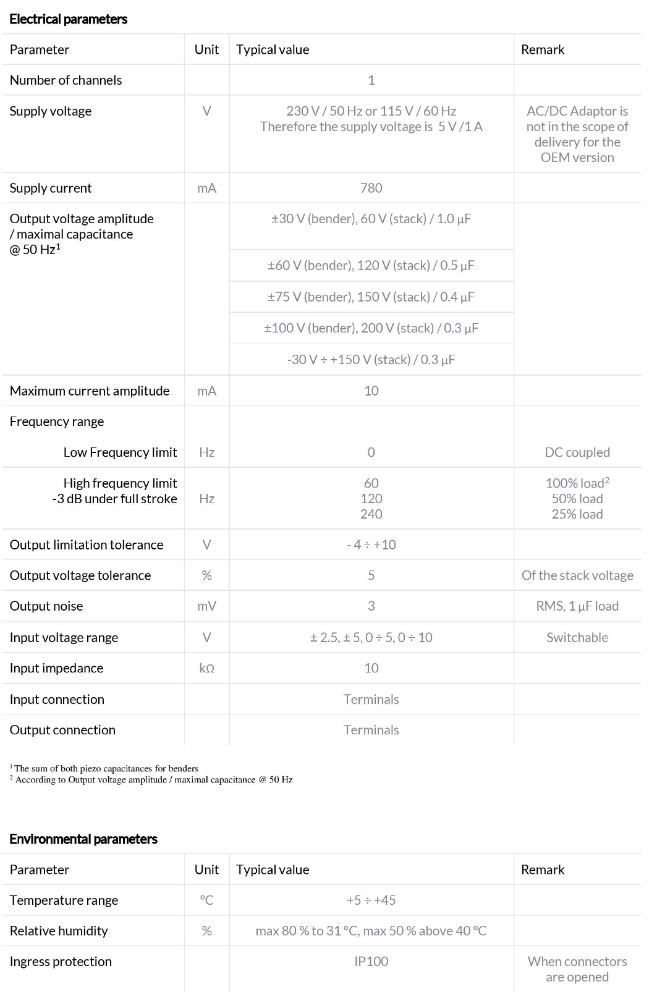

Specifications
Noliac - Your Piezo Partner
Features

NDR6110 OEM is a single channel dynamic board that can be fitted into your own system. The piezo driver is intended as a basic device enabling supply of various piezoelectric actuators with static and dynamics voltage in the range up to ±100V or 0-200V. The driver can be used as a part of fine adjustment mechanism in mechanical positioning equipment with piezo feed, or for other piezo element applications. The NDR6110 OEM can supply actuators with a capacity of up to 1 μF. The driver provides the same features and capacity as the standalone model NDR6110.

Features

  • Bipolar and unipolar output load
  • Galvanic separation of the output
  • Adjustable input range and phase inversion
  • Full stroke driving capability for:
  • Benders (bimorphs)
  • Stacked actuators
  • Bipolar stacks
  • Shear mode actuators
  • Low noise
  • Small unified dimensions
Standard versions
