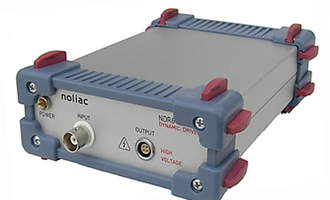

NDR6110 Single Channel Dynamic Driver

NDR6110 is a standalone single channel dynamic piezo driver. The piezo driver features bipolar and unipolar output load, and has a galvanic separation of the output. The NDR6110 can supply actuators with a capacity of up to 1 μF.

Specifications Features Standard versions

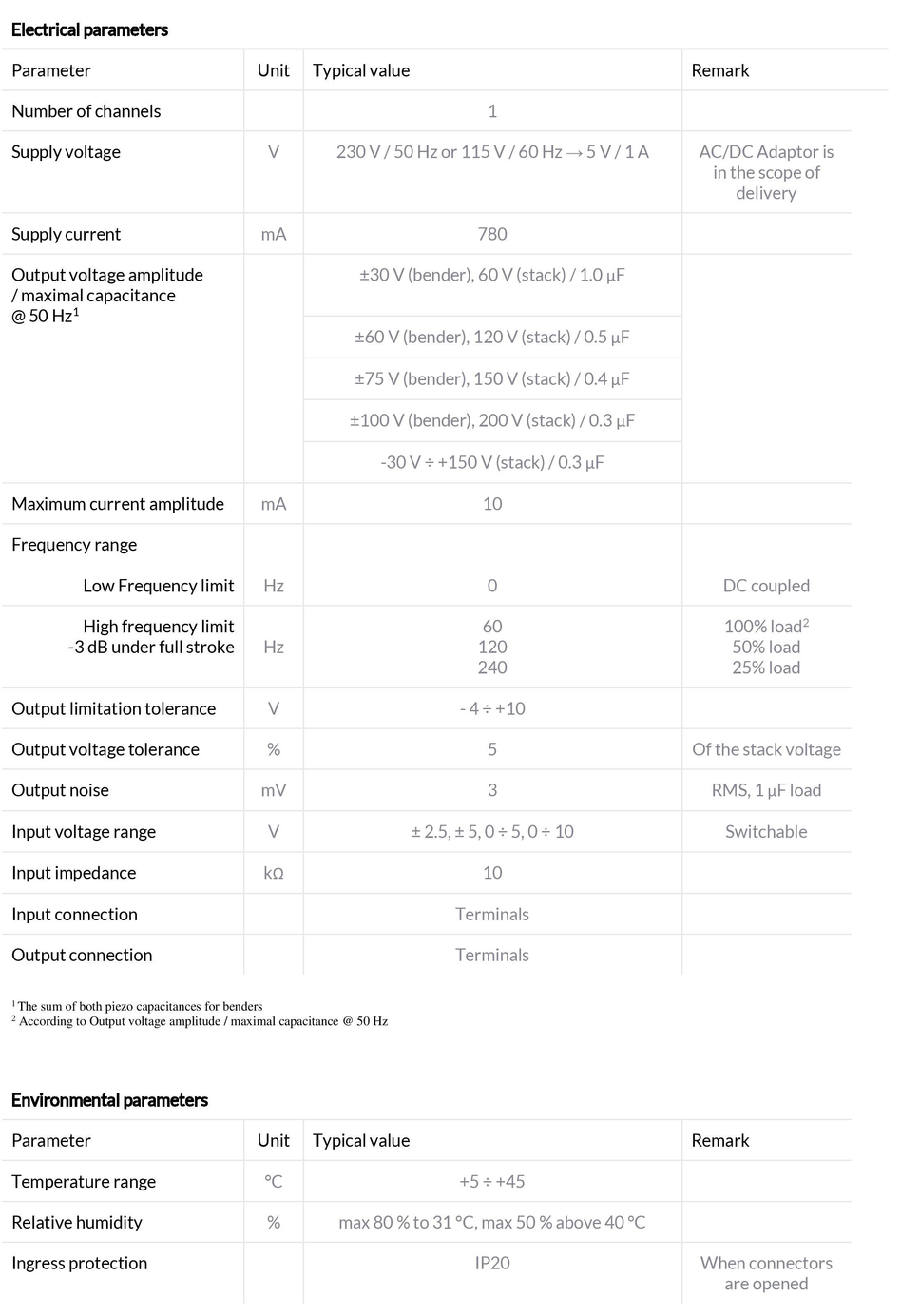

Specifications
Noliac - Your Piezo Partner
Features

NDR6110 is a standalone single channel dynamic piezo driver. The piezo driver is intended as a basic device enabling supply of various piezoelectric actuators with static and dynamics voltage in the range up to ±100V or 0-200V. The driver can be used as a part of fine adjustment mechanism in mechanical positioning equipment with piezo feed, or for other piezo element applications. The NDR6110 can supply actuators with a capacity of up to 1 μF.

Features

  • Bipolar and unipolar output load
  • Galvanic separation of the output
  • Adjustable input range and phase inversion
  • Full stroke driving capability for:
  • Benders (bimorphs)
  • Stacked actuators
  • Bipolar stacks
  • Shear mode actuators
  • Low noise
  • Small unified dimensions

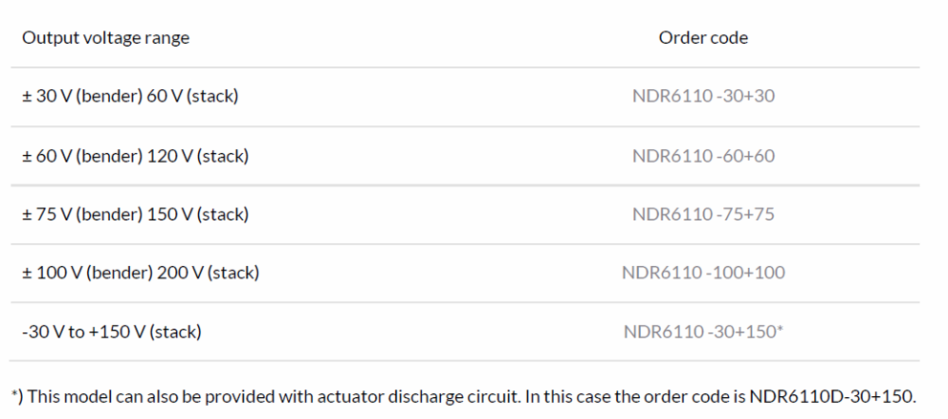

Standard versions
