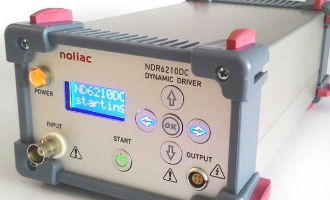

NDR6210 and NDR6220 Single Channel Dynamic Driver

NDR6210 and NDR6220 are single channel dynamic piezo drivers. Both piezo drivers have adjustable output range and can supply actuators with capacity up to 100uF. The output voltage range is from -60 to +300 V or ± 180 V depending on the piezo type.

Specifications Features

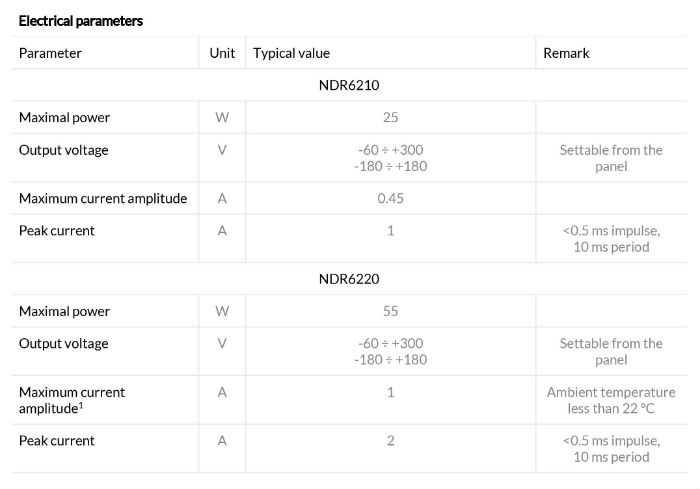

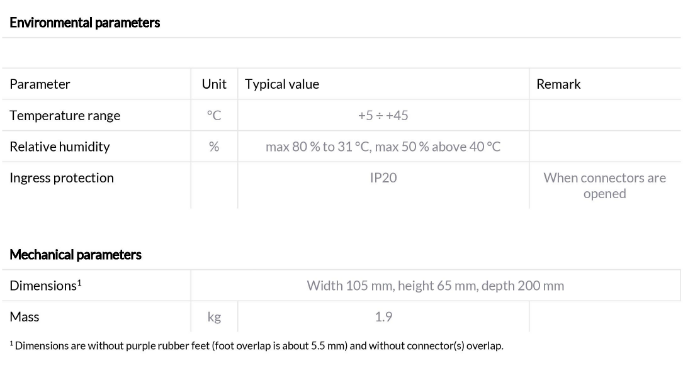

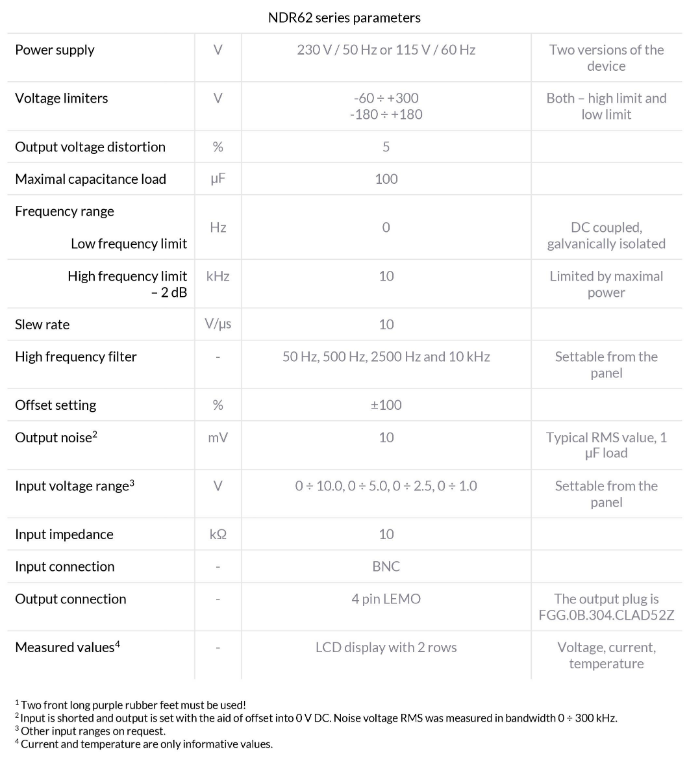

Specifications
Noliac - Your Piezo Partner
Noliac - Your Piezo Partner
Noliac - Your Piezo Partner
Features

NDR6210 and NDR6220 are single channel dynamic piezo drivers. Both piezo drivers have adjustable output range and can supply actuators with capacity up to 100 uF. The output voltage range is from -60 to +300 V or ± 180 V depending on the piezo type. The drivers NDR6210 and NDR6220 are designed to work as static and dynamic power supply.

Features

  • Fast linear low noise driver
  • Galvanic separation of the output
  • Adjustable input range and phase inversion
  • Adjustable output range
  • 4 predefined cut off frequencies
  • G class design with higher efficiency so less warming
  • Soft startup
  • Adjustable output voltage limiters
  • Actuator discharge circuit
  • Switch off timer
