NDR6210DC and NDR6220DC Single Channel Dynamic Driver

NDR6210DC and NDR6220DC are DC versions of the piezo drivers NDR6210 and NDR6220 with similar features. The output voltage range is from 0 to ±200V or ± 100V depending on the piezo type.

Specifications Features

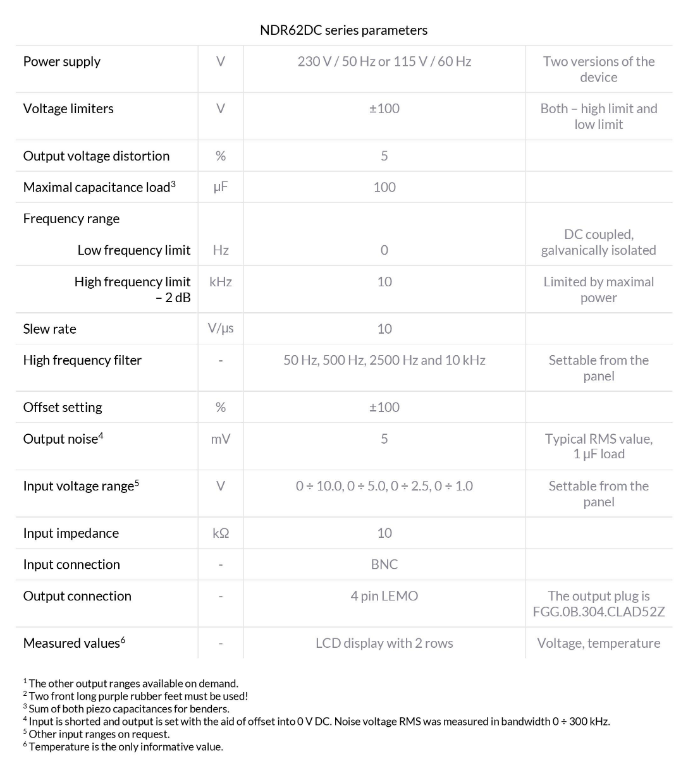

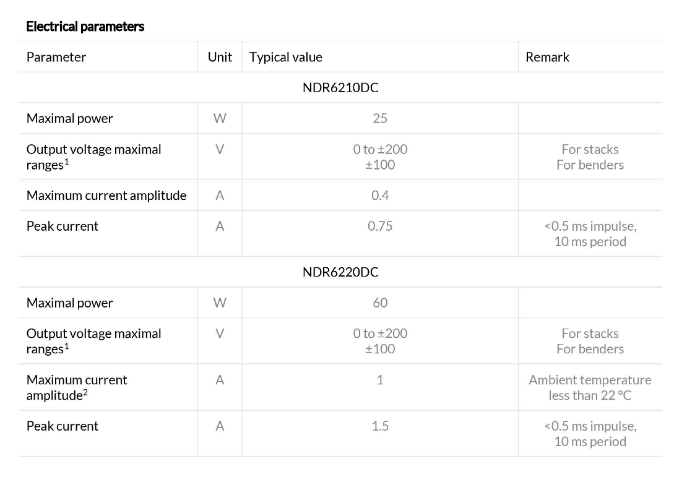

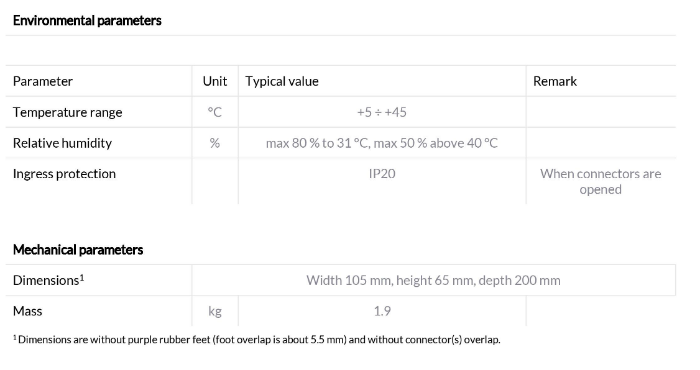

Specifications
Noliac - Your Piezo Partner
Noliac - Your Piezo Partner
Noliac - Your Piezo Partner
Features

NDR6210DC and NDR6220DC are DC versions of the piezo drivers NDR6210 and NDR6220 with similar features. They work with 2 DC sources going up to ± 100V DC. Both drivers can supply actuators with capacity up to 100 uF. The output voltage range is from 0 to +200V or ± 100V depending on the piezo type.

Features

  • Fast linear low noise driver
  • Galvanic separation of the output
  • Adjustable input range and phase inversion
  • 4 predefined cut off frequencies
  • G class design with higher efficiency so less warming
  • Soft startup
  • Adjustable output voltage limiters
  • Actuator discharge circuit
  • 2 DC sources up to ±100V DC
  • Switch off timer
