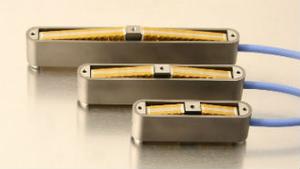

Product launch: Amplified piezo actuator – new generation in three different sizes!

Noliac launches a new generation of the amplified piezo actuator, which is a compact piezo actuator solution with a high resonance frequency. The new model features a major improvement regarding temperature stability. The amplified piezo actuator is available in three different sizes.
Product launch: Amplified piezo actuator – new generation in three different sizes!

High stability at high temperatures
Amplified actuators are very often unstable in temperature due to the differential thermal expansion between the piezoelectric element and the amplification frame. Due to a built-in differential configuration, the Noliac amplified actuator is temperature stable. Raimundas Lucinskis, R&D engineer at Noliac, explains the high temperature stability of the new amplified actuator:

- We have significantly improved the temperature range, where the new models of the amplified actuators perform at a stable level up to 110 °C. We have achieved this by constructing the outer shell of titanium alloy that provides a relatively low thermal expansion coefficient. Combined with the other materials within the actuator, this change allows for a very homogeneous performance of the actuator over a wide temperature range. This improvement makes the amplified actuator suitable for an even wider range of applications.

Read more about the amplified actuator

High stroke and frequency, compact design and low weight
The amplified actuator is more compact and robust than many commercially available amplification systems of comparable performance. The unique design is also both smaller and lighter than competing amplified actuators. The amplified actuator from Noliac can be used for applications in systems requiring large controllable displacements together with high forces and minimal weight.

Three standard sizes and customized solutions
The new design is introduced with a range of three standard models, which allows for easy integration into a wide spectrum of applications. Cedric Goueffon, Global Sales Manager at Noliac, explains:

- Introducing the new model with three standard sizes makes it much easier for our customers to find the right solution to a specific application. If a customer requires a different size or performance, we can always custom design a solution to match specific requirements. We look forward to assisting our customers in finding piezo solutions with the new amplified actuator.

Standard sizes (WxLxH in mm):

  • NAC2641: 14x70.5x26.1
  • NAC2643: 14x102.4x28
  • NAC2645: 14x134.2x30.6

Find the specifications

Contact us for further information
If you want to know more about the new generation of the amplified actuator, please contact us using the Request for Quote form or contact sales.

Features of the amplified actuator

  • High stroke
  • High force
  • High resonance frequency and thus wide operating bandwidth
  • Push and pull with same level of performance
  • Low magnetic
  • Temperature stable
  • Compact
  • Lightweight
  • Design flexibility
