Materials

Noliac - Your Piezo Partner

Materials

Noliac manufactures piezoceramic materials based on modified lead zirconate titanate (PZT) of high quality for custom specifications. Piezoceramic materials are usually divided into two groups: hard doped and soft doped materials.

Specifications for all Noliac materials Navy types - equivalences Hard doped materials Soft doped materials

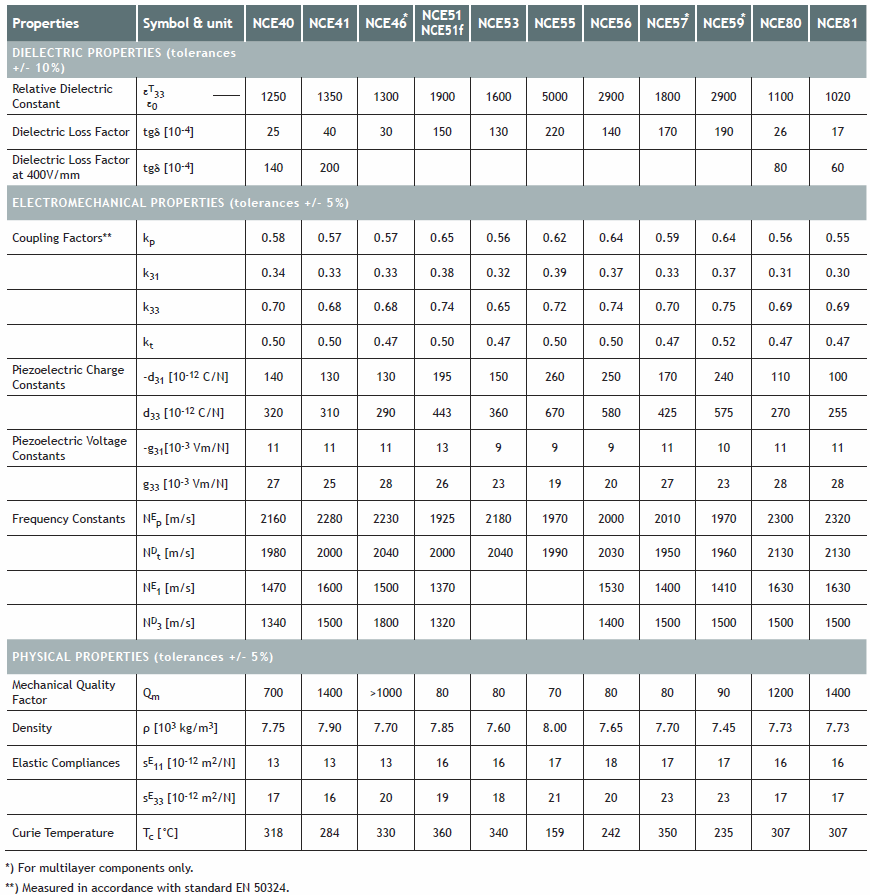

Specifications for all Noliac materials
Noliac - Your Piezo Partner

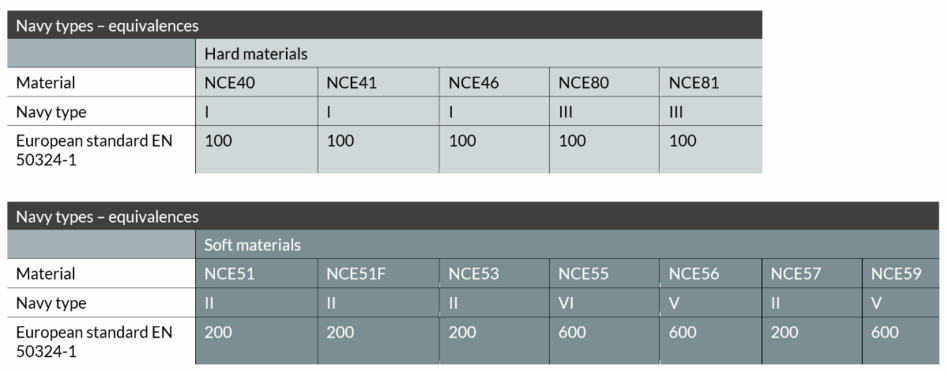

Navy types - equivalences
Noliac - Your Piezo Partner
Hard doped materials
Noliac - Your Piezo Partner

Hard doped PZT can be exposed to high electrical and mechanical stresses. The stability of their properties makes them ideal for high-power applications.

These are Noliac’s standard hard doped piezo materials currently available – click for specifications.

Product code

* For multilayer components only

Piezoelectric materials NCE41 and NCE40 are low loss materials for high power applications. The low dielectric and mechanical losses (tan(δ), Qm) combined with high piezoelectric charge constant (d33) make them suitable for high-performance ultrasonic applications.

Furthermore NCE41 and NCE40 can be exposed to high repetitive quasi-static and dynamic loads for ignition applications. NCE41 and NCE40 differ from each other in permittivity and mechanical quality factor values.

The piezoceramic material NCE80 is intended for power transducers with highest electric drive. Its low dielectric and mechanical losses at extremely high electric drive and high coupling factors make it suitable for high-power applications.

Soft doped materials
Noliac - Your Piezo Partner

Soft doped piezoceramic materials have their strength in applications requiring high strain. The high sensitivity of the materials make them particularly suitable for sensing applications, receivers, actuators and low power transducers.

These are Noliac’s standard soft doped piezo materials currently available – click for specifications.

Product code

* For multilayer components only

These materials are characterized by high relative permittivity, large electromechanical coupling factors, large piezoelectric constants and low mechanical quality factors. They are distinguished by a comparatively high domain mobility and thus “ferroelectrically soft” behaviour, i.e. relatively easy polarization.

Piezoelectric materials NCE51 and NCE57 are standard soft materials, particularly suitable for actuators and low power nonresonant applications in which high coupling factor and /or high charge sensitivity are requested.

Piezoceramic material NCE53 has slightly lower electro-mechanical coupling factor, but has the advantage of higher temperature stability, and it is suitable especially for shear mode vibration sensors.

Piezoelectric materials NCE55 and NCE56 are very high sensitivity materials featuring extremely high permittivity, large coupling factor and piezoelectric constant. These materials are suitable for a wide range of high sensitivity applications.

NCE40
NCE40
Noliac piezoceramic material NCE40 is a hard doped material with low loss for high power applications.
NCE41
NCE41
Noliac piezoceramic material NCE41 is a hard doped material with low dielectric and mechanical loss. Combined with a high piezoelectric charge constant (d33), it is suitable for high-performance...
NCE46
NCE46
Noliac piezoceramic material NCE46 is a hard doped material, which can be exposed to high electrical and mechanical stresses.
NCE51
NCE51
Noliac piezoceramic material NCE51 is a standard soft material, particularly suitable for actuators and low power non-resonant applications in which high coupling factor and /or high charge...
NCE51F
NCE51F
Noliac piezoceramic material NCE51F is a variant of NCE51 and it will generally be used in Noliac’s standard range for multilayer actuators ≥150V.
NCE53
NCE53
Noliac piezoceramic material NCE53 has a slightly lower electro-mechanical coupling factor, but has the advantage of higher temperature stability, and it is suitable especially for shear mode...
NCE55
NCE55
Noliac piezoelectric material NCE55 has a high sensitivity featuring extremely high permittivity, large coupling factor and piezoelectric constant.
NCE56
NCE56
Noliac piezoceramic material NCE56 has a very high sensitivity featuring extremely high permittivity, large coupling factor and piezoelectric constants.
NCE57
NCE57
Piezoelectric materials NCE51 and NCE57 are standard soft materials, particularly suitable for actuators and low power non-resonant applications in which high coupling factor and /or high charge...
NCE59
NCE59
Noliac piezoceramic material NCE59 has a very high sensitivity featuring extremely high permittivity, large coupling factor and piezoelectric constants.
NCE80
NCE80
Noliac piezoceramic material NCE80 is intended for power transducers with highest electric drive. Its low dielectric and mechanical losses at extremely high electric drive and high coupling factors...
NCE81
NCE81
Noliac piezoceramic material NCE81 has extremely high mechanical quality and extremely low signal loss factor for ultimate power handling capability.
