NCE55

Noliac piezoelectric material NCE55 has a very high sensitivity featuring extremely high permittivity, large coupling factor and piezoelectric constants.

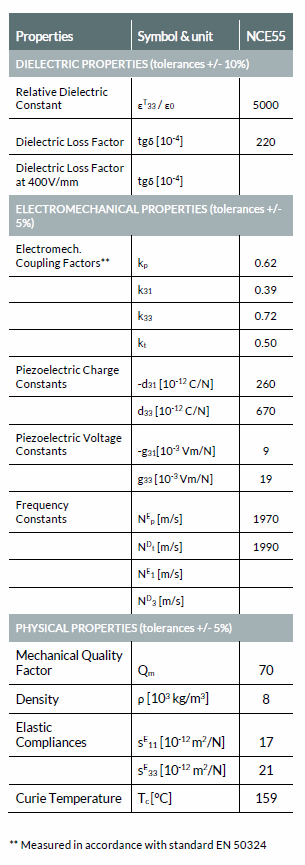

Specifications
Specifications
Noliac - Your Piezo Partner

The values listed are for reference purposes only and cannot be applied unconditionally to all shapes and dimensions. Values vary depending on the actual shape, surface finish, shaping process and post-processing of the product.
