NCE41
Noliac piezoceramic material NCE41 is a hard doped material with low dielectric and mechanical loss. Combined with a high piezoelectric charge constant (d33), it is suitable for high-performance ultrasonic applications.

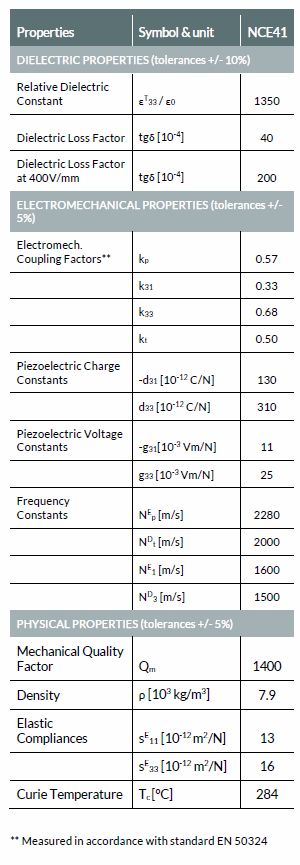

Specifications

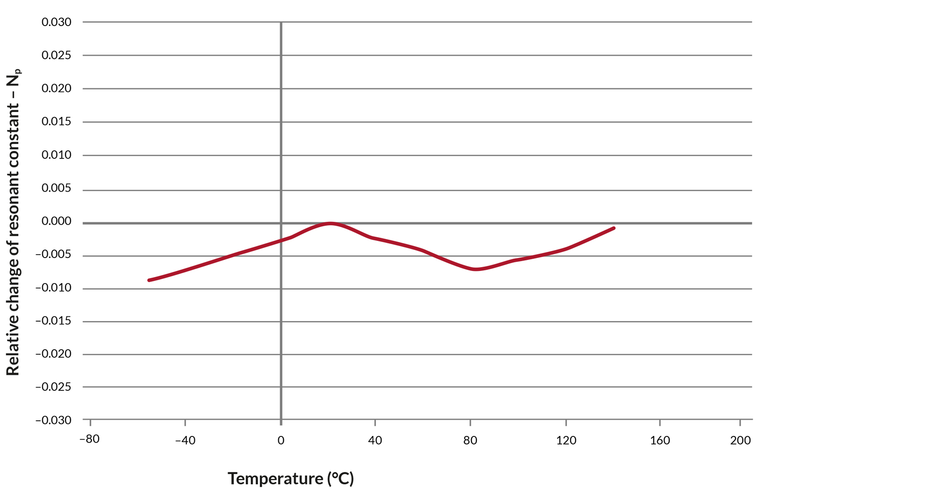

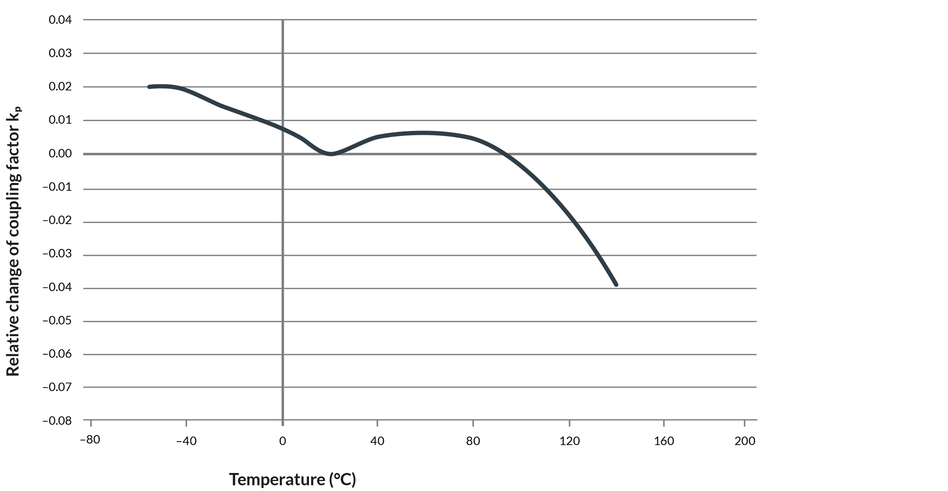

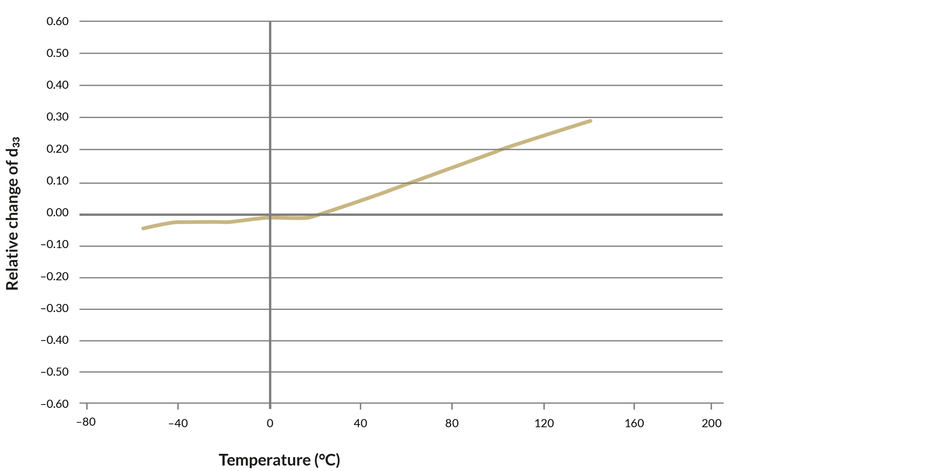

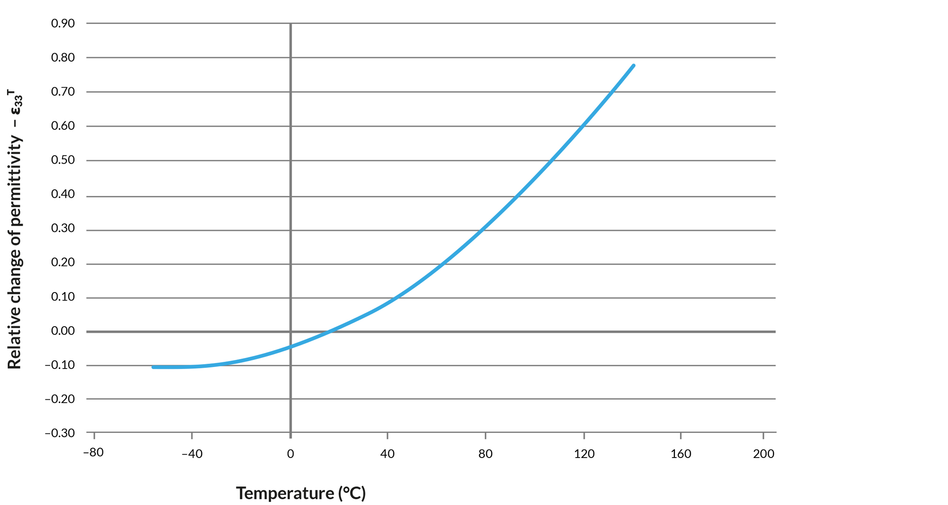

Temperature dependencies
Specifications
The values listed are for reference purposes only and cannot be applied unconditionally to all shapes and dimensions. Values vary depending on the actual shape, surface finish, shaping process and post-processing of the product.
Temperature dependencies
