Connectors

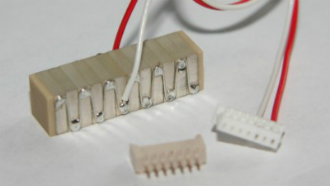

Noliac offers a PicoBlad connector system from Molex allowing you to plug the actuator directly on a print circuit board or to your driving electronic.

If you have any questions about the connector or have a different requirement, please use our Request for Quote form or contact sales.

PDF version

Other customization possibilities

Materials for your application

Depending on the application, your requirements for frequency range and operating temperature may vary. Read about our range of materials.

Actuator electrode material and pattern

We use screen printed electrodes fired on silver as standard, but we also offer Ni and Ni/Au. We match your request for a specific electrode pattern, wrap around electrode and poling configurations.

Actuator dimensions, geometry and frequency tolerances

We can adjust dimensions, geometry and frequency tolerances to match your product requirements. See our most common shapes and sizes.

Nominal voltage

Noliac can customize the nominal voltage from 45 V and up to match your specific requirements. Our standard nominal voltage range of 60 V to 200 V can be applied to all shapes and dimensions of our...

Customized end pieces

Noliac offers to custom design the end piece in terms of shape and material for your specific application. Typical shapes are hemispheres or cones (concave or convex).

Through hole

Noliac piezo actuators can be produced with a through hole. This feature is widely used in optical applications, where the inner hole serves as a clear aperture for light beams or optical fibers. The...

Customized testing for actuators

We offer customized testing to make sure our products meet your specific requirements.

Customized packaging for actuators

We are experts in piezo, so we take care of our products. We offer customized packaging solutions to match your specific requirements.

Consider these options

Strain gauge

Noliac piezo actuators can be fitted with a strain gauge. The gauge provides feedback used to ensure linear voltage/stroke response and to adjust hysteresis when the piezo actuator with the strain...

End pieces

Noliac offers a wide selection of end pieces for your piezo actuator. We have a range of top pieces and standard ceramic end plates. If you need a different design for your application, we can custom...

Wires

When you order actuators from Noliac, you can have wires fitted to save time and money. There are different wiring options for the specific product type.

Ultra-high vacuum

Noliac piezos are available in versions especially designed for ultra-high vacuum, UHV, applications. Testing exhibits low outgassing levels proving the UHV compatibility even of stacked piezo...

Parallelism

Noliac offers parallelism with high accuracy on a number of standard actuator plate and ring stacks. We offer this option for stacks with cross sections of 5x5 mm, 7x7 mm and 10x10 mm and a variety...

Bender holder

For your standard Noliac plate bender, consider this add-on providing you with a plug-and-play bender. The bender holder grants strain relieve for the wires and is compatible with all Noliac standard...

A piezo partner - what do we mean by that

We give you a competitive advantage by using our extensive knowledge to customize and optimize your piezo products. Thus, we will be your long-term piezo partner. Send your request today.
