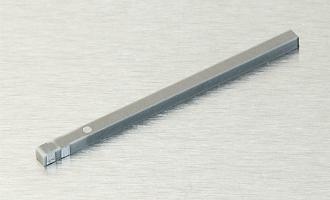

Noliac 2D multilayer bender actuators are capable of moving up, down, right and left, or as a single or double s-morph. The piezo design is scalable in terms of stiffness, displacement and dimensions.

Products

Product type
Length / outer diameter
Width / inner diameter
Height
Operating voltage, max.
Free stroke, max.
Blocking force, max.
Length / outer diameter
40 mm
Width / inner diameter
8 mm
Height
2 mm
Operating voltage, max.
200 V
Free stroke, max.
± 34 µm
Blocking force, max.
27 N
Length / outer diameter
28 mm
Width / inner diameter
2.5 mm
Height
2.5 mm
Operating voltage, max.
200 V
Free stroke, max.
± 35 µm
Blocking force, max.
3.8 N
Length / outer diameter
36.5 mm
Width / inner diameter
1.75 mm
Height
1.75 mm
Operating voltage, max.
60 V
Free stroke, max.
± 90 µm
Blocking force, max.
0.35 N
