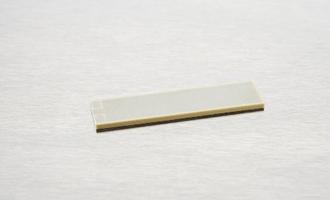

Noliac multilayer bending actuator generate a bending mode. The piezo plate benders are produced with a stroke up to +/- 1270 µm.

Products

Product type
Length / outer diameter
Width / inner diameter
Height
Operating voltage, max.
Free stroke, max.
Blocking force, max.
Length / outer diameter
21 mm
Width / inner diameter
7.8 mm
Height
0.7 mm
Operating voltage, max.
200 V
Free stroke, max.
± 195 µm
Blocking force, max.
1.2 N
Length / outer diameter
21 mm
Width / inner diameter
7.8 mm
Height
1.3 mm
Operating voltage, max.
200 V
Free stroke, max.
± 120 µm
Blocking force, max.
3.7 N
Length / outer diameter
21 mm
Width / inner diameter
7.8 mm
Height
1.8 mm
Operating voltage, max.
200 V
Free stroke, max.
± 85 µm
Blocking force, max.
5.5 N
Length / outer diameter
32 mm
Width / inner diameter
7.8 mm
Height
0.7 mm
Operating voltage, max.
200 V
Free stroke, max.
± 475 µm
Blocking force, max.
0.75 N
Length / outer diameter
32 mm
Width / inner diameter
7.8 mm
Height
1.3 mm
Operating voltage, max.
200 V
Free stroke, max.
± 345 µm
Blocking force, max.
2.25 N
Length / outer diameter
32 mm
Width / inner diameter
7.8 mm
Height
1.8 mm
Operating voltage, max.
200 V
Free stroke, max.
± 210 µm
Blocking force, max.
4.3 N
Length / outer diameter
50 mm
Width / inner diameter
7.8 mm
Height
0.7 mm
Operating voltage, max.
200 V
Free stroke, max.
± 1270 µm
Blocking force, max.
0.4 N
Length / outer diameter
50 mm
Width / inner diameter
7.8 mm
Height
1.3 mm
Operating voltage, max.
200 V
Free stroke, max.
± 850 µm
Blocking force, max.
1.6 N
Length / outer diameter
50 mm
Width / inner diameter
7.8 mm
Height
1.8 mm
Operating voltage, max.
200 V
Free stroke, max.
± 635 µm
Blocking force, max.
2.9 N
