Shear plate actuators

Shear plate actuators

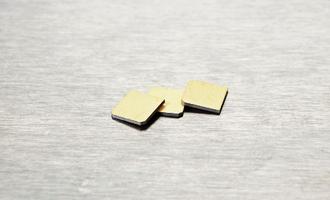

Noliac shear plate actuators are more compact and have higher resonant frequencies than conventional actuators. They achieve a peak-peak stroke of 1.5µm. The monolayer piezo shear plates also require reduced electrical energy for a given displacement.

Products

Product type
Length
Width
Height
Operating voltage, max.
Free stroke, from -Vmax to +Vmax
Capacitance
Length
2 mm
Width
2 mm
Height
0.5 mm
Operating voltage, max.
± 320V
Free stroke, from -Vmax to +Vmax
1.5 µm
Capacitance
0.13 nF
Length
5 mm
Width
5 mm
Height
0.5 mm
Operating voltage, max.
± 320V
Free stroke, from -Vmax to +Vmax
1.5 µm
Capacitance
0.83 nF
Length
10 mm
Width
10 mm
Height
0.5 mm
Operating voltage, max.
± 320V
Free stroke, from -Vmax to +Vmax
1.5 µm
Capacitance
3.32 nF
Length
15 mm
Width
15 mm
Height
0.5 mm
Operating voltage, max.
± 320V
Free stroke, from -Vmax to +Vmax
1.5 µm
Capacitance
7.47 nF
